Installing the boost pressure sensor on the intake plenum

• Check the sealing ring (1) for damage, replace boost pressure sensor if necessary.

  Parts:  Boost pressure sensor

• Coat sealing ring (1) of boost pressure sensor thinly with lubricant.

Courtesy of BMW OF NORTH AMERICA, INC.

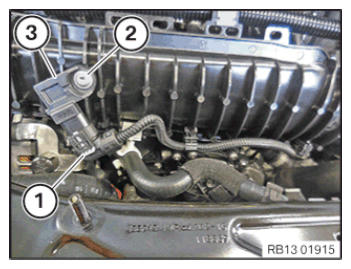

• Insert and install the boost pressure sensor (3) on the intake plenum.
• Tighten down screw (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Boost pressure sensor for intake plenum
  Screw TS6x20	Tightening torque	5Nm

• Connect and lock the connector (1).
• Make sure the connector (1) engages audibly.
