Removing the throttle body
Preliminary work
- Refer to REMOVING INTAKE PORT .
- Refer to REMOVING INTAKE SILENCER HOUSING .
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION
- Fasten locks (1) in the bracket (arrows) in direction of arrow.
- Unlock and loosen the connector (1) on the boost pressure sensor.
- Unlock and detach the connector (2) of the throttle valve.
- Unlock pressure pipe (3) on throttle body and set aside.
- Loosen screws (1).
- Guide out and remove throttle valve (2).
- If installed: Unlock and release engine ventilation line (1).
- Loosen screws (2).
- Feed out and remove the throttle valve.

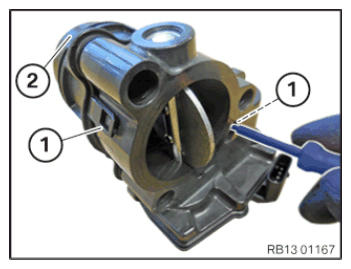

- Unlock and loosen the locks (1) with conventional tools.
- Remove the throttle bodies (2).
