Installing the throttle body

• Replace sealing ring (1).

  Parts:  Sealing ring

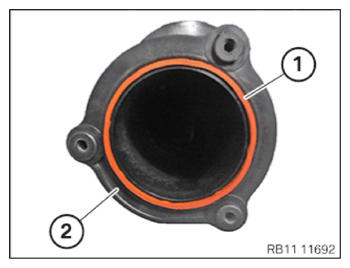

• Guide in and install sealing ring (1) on intake plenum (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace sealing ring (1).

  Parts:  Sealing ring

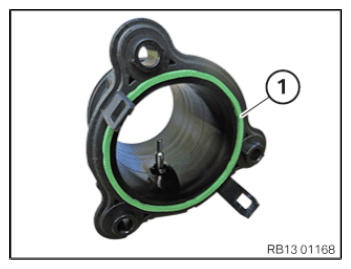

• Insert and install new sealing ring (1) on the throttle body.

Courtesy of BMW OF NORTH AMERICA, INC.

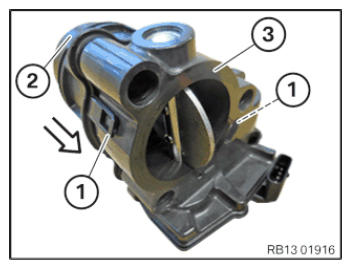

• Guide in and install throttle body (2) on throttle valve (3) in the arrow direction.
• Ensure that locks (1) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

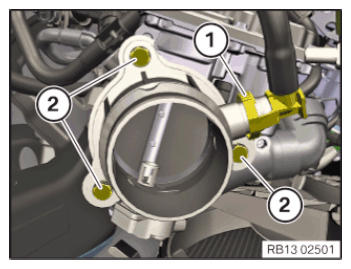

• Thread in and install the throttle valve.
• Tighten down screws (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Throttle body to intake plenum
  6x50	Tightening torque	7Nm

• If installed:  Connect and lock the engine ventilation line (1).

  The engine ventilation line (1) must engage audibly.

• Check seal (1) for damage and replace seal (1) as needed.

  Parts:  Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the damaged seal

• Remove damaged seal.
• Clean the gasket groove (1) with a dry cloth.

  The gasket groove (1) must be clean.

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace gasket.

  Parts:  Gasket

• Install the seal dry without lubricant or mounting agent.

• Thread in seal and install.
• Make sure that the seal is installed correctly in the gasket groove (1).
• Make sure that the sealing lip (2) is directed to the inside as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

• Detach locks (1) from the holders in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock connector (1) on the boost pressure sensor.
• Connect and lock the connector (2) on the throttle valve.
• Make sure that the connector (1) and (2) engages audibly.
• Insert and install pressure pipe (3) on the throttle body.
• Make sure the pressure pipe (3) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING INTAKE SILENCER HOUSING .
• Refer to INSTALLING INTAKE PORT .
