Installing the intake plenum

Replace seals (1).
Parts: Seals
Align the intake plenum by means of the guides (2) with the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the intake plenum (6) and install it.
Position the intake plenum (6).
Tighten the screws in the sequence (1), (2), (3), (4), (5).

Tighten the screws in the sequence (1), (2), (3), (4), (5).

TIGHTENING TORQUES SPECIFICATION

Intake plenum to cylinder head Observe tightening sequence.
M6	Tightening torque	10Nm

Fig 1: Intake Plenum Bolts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Check seal (1) for damage and replace seal (1) as needed.
Parts: Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
Detach locks (1) from the holders in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

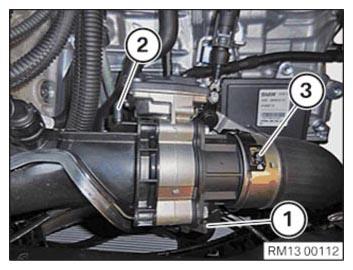

Connect and lock connector (1) on the boost pressure sensor.
Connect and lock the connector (2) on the throttle valve.
Make sure that the connector (1) and (2) engages audibly.
Connect the pressure pipe (3) on the throttle body and lock.
Make sure the pressure pipe (3) engages audibly at the throttle body.

Courtesy of BMW OF NORTH AMERICA, INC.
Thread in cable channel (1) and install.
Make sure that the locks (arrows) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Guide the fuel delivery line (2) in and install.

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Fuel delivery line to cylinder head cover
M6x18	tightening torque	7Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the coolant line (1) to the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect and lock connector (1) on the boost pressure sensor.
Make sure the connector (1) engages audibly at the boost pressure sensor.
Insert and install the wiring harness (3).
Secure clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the connector (1) to the Valvetronic controller and lock it.
Make sure the connector (1) engages audibly.
Clip in the wiring harness (2) on the intake plenum.
Clip in the positive battery cable of the alternator (3) on the intake plenum.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
