Installing front door trim panel

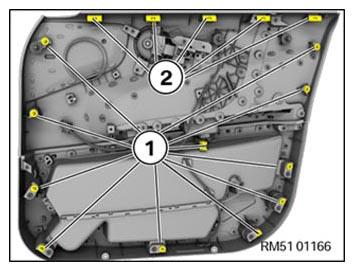

Check clips (1) for damage and replace if necessary.
NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
Check clamps (2) for damage and replace if necessary.
Clip the clamps (2) into the associated mountings on the door.

Courtesy of BMW OF NORTH AMERICA, INC.

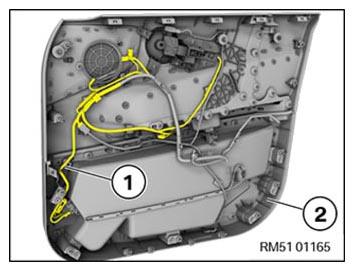

Clip the detents of the door wiring harness (1) into the door trim panel (2).
Connect the connectors of the door wiring harness (1) and lock.
Position the door trim panel (2) on the door.

Courtesy of BMW OF NORTH AMERICA, INC.

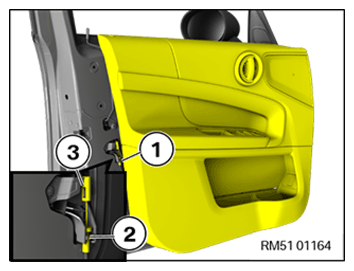

Attach the Bowden cable for the door opener (1) on the door lock (3) first and then on the counter support (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the locking rod through the opening in the door trim panel (1).

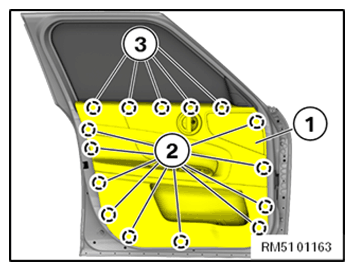

Lock the door trim panel (1) with the clips (2) and the clamps (3).

Courtesy of BMW OF NORTH AMERICA, INC.

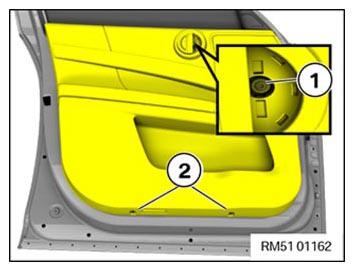

Tighten down screws (1) and (2).
TIGHTENING TORQUE SPECIFICATIONS

Door, finisher panel, front

Oval-head screw 3Nm

Courtesy of BMW OF NORTH AMERICA, INC.

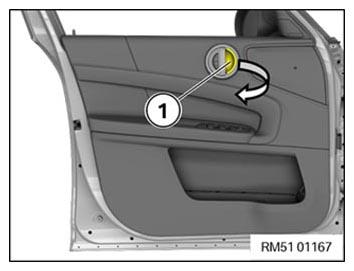

Clip in the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Door, finisher panel, front
Oval-head screw	3Nm
