41 61 563 REMOVING AND INSTALLING/REPLACING THE LEFT HOOD HINGE (HOOD REMOVED) REP-REP-RAF6041-4161060 - V.1 (Countryman 2017-2023, except PHEV)

For stripping and rebuilding operations, see the surrounding texts on the KSD (FRU number 41 61 563).

Necessary preliminary work

• REMOVE left windshield panel cover.

Removal

Remove water drain channel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove hinge.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

For replacement (US version only):

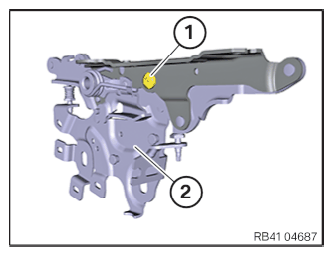

Tighten the screw (1) on the hood hinge (2).

Tightening torque 41 61 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install hinge and tighten screws (1).

Tightening torque 41 61 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install the water drain channel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• INSTALL left windshield panel cover.
• ADJUST  hinge together with engine compartment lid.
