63 10 004 Adjusting headlights (Countryman 2017-2023, except PHEV)
NOTE:
Comply with TEST PRECONDITIONS FOR HEADLIGHT ADJUSTMENT .

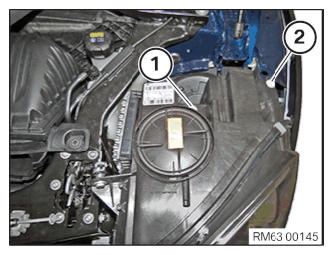

Carry out headlight adjustment at adjustment screws (1) and (2).
A definite allocation of adjustment screws is not possible.
- Adjustment screw primarily for vertical adjustment
- Adjustment screw primarily for lateral adjustment
US version only:
Only set the lateral adjustment if the safety plug in the lateral adjustment screw is MISSING OR DAMAGED .
Remove the plug from the adjustment screw using a suitable tool before lateral adjustment
After headlight adjustment:
Perform reference run. For this purpose, switch off and on the headlights. Check again headlight adjustment.
US version only:
Push new plug into the ADJUSTMENT SCREW FOR THE LATERAL ADJUSTMENT without damaging it.
