Body Equipment -- Repair Cooper Countryman (F60)
>>
51 47 Floor-Trunk-Engine Compartment-Trim Panel
>>
51 47 030 Removing and installing/replacing the rear left or right door sill cover strip (inner) (Countryman 2017-2023, except PHEV)
>>
Install the rear door sill cover strip
Install the rear door sill cover strip

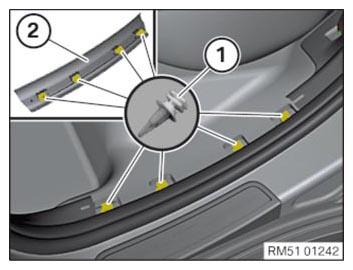

Remove the clips (1) from the body and insert the door sill cover strip (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Position the door sill cover strip (1) from the top with the clips (2) and clip it in.
Courtesy of BMW OF NORTH AMERICA, INC.
