Removing and installing or replacing drinks holder (Countryman 2017-2023, except PHEV)

Preliminary work needed:

• Remove CENTER CONSOLE TRIM .

Removal:

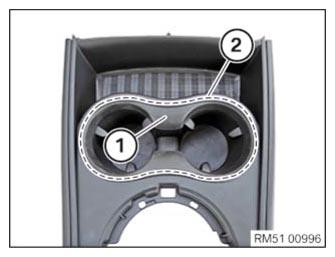

Unclip the trim (1) from the detents (2) towards the top.

Courtesy of BMW OF NORTH AMERICA, INC.

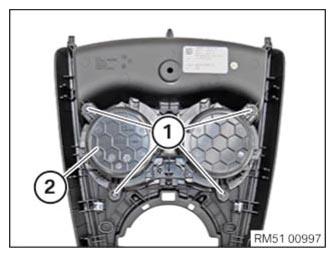

Unscrew the screws (1).

Remove cup holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert the cup holder (2).

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in the trim (1) on the detents (2) coming from the top.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Mounting CENTER CONSOLE TRIM .
