Body Equipment -- Repair Cooper Countryman (F60)
>>
51 12 Bumper, Rear
>>
51 12 050 Removing and installing/replacing support for rear bumper panel (Countryman 2017-2023, except PHEV)
>>
Removing the support for the rear bumper panel
Removing the support for the rear bumper panel
Preliminary work
Refer to
REMOVE THE SERVICE CAP FOR THE TAIL LIGHT ON THE LEFT AND RIGHT
.
Refer to
REMOVING THE LEFT AND RIGHT TAIL LIGHTS
.
Refer to
REMOVE REAR BUMPER TRIM
.

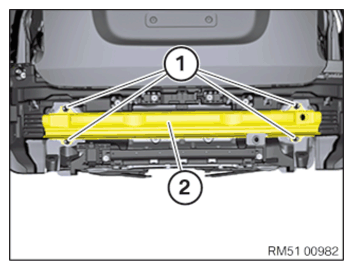

Loosen nuts (1).
Remove support (2).
Courtesy of BMW OF NORTH AMERICA, INC.
