Remove rear window wiper motor

Preliminary work

• Refer to OPEN THE PROTECTIVE CAP .
• Refer to REMOVING WIPER ARM FOR REAR WIPER .
• Refer to REMOVE THE POWER TAILGATE SWITCH .
• Refer to REMOVING THE TRIM FOR THE TOP REAR WINDOW FRAME .
• Refer to REMOVING BOTH TRIM PIECES FOR THE REAR WINDOW FRAME .
• Refer to REMOVING TAILGATE TRIM PANEL .

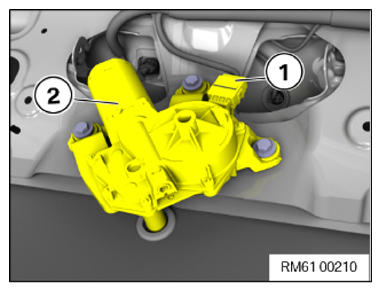

• Unlock and disconnect the plug connection (1) from the rear window wiper motor (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

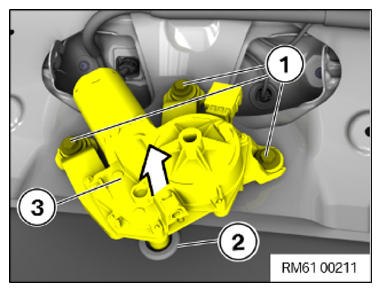

• Release the screws (1) and feed out and remove the rear window wiper motor (3) from the grommet (2).

Courtesy of BMW OF NORTH AMERICA, INC.
