General Electrical System -- Repair Cooper Countryman (F60)
>>
61 62 Rear Wiper
>>
61 62 020 Replacing the wiper blade for the rear wiper (Countryman 2017-2023, except PHEV)
>>
Remove the wiper blade for the rear wiper
Remove the wiper blade for the rear wiper

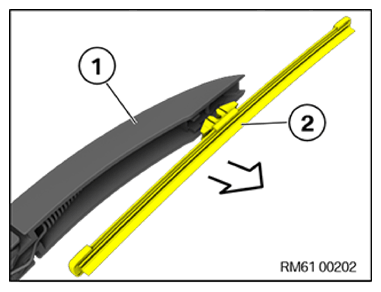

Set up the wiper arm for the rear wiper (1) with the wiper blade for the rear wiper (2).
Unclip and remove the wiper blade for the rear wiper (2) from the wiper arm for the rear wiper (1) in arrow direction.
Courtesy of BMW OF NORTH AMERICA, INC.
