Installing the selector lever

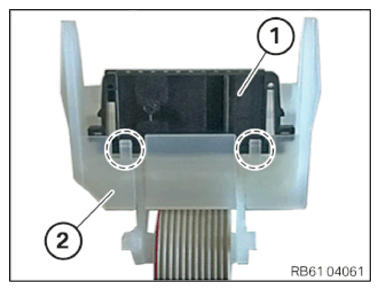

Clip connector (1) into plastic guide (2).

Courtesy of BMW OF NORTH AMERICA, INC.

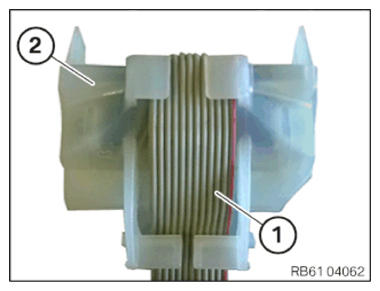

Ensure that wiring harness (1) is laid correctly in plastic guide (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Fit selector lever (1) on the gearshift rod in the arrow direction.
Align selector lever (1) in the driving direction by pressing on it lightly (until the anti-twist lock engages).
The selector lever must not lock in place with the gearshift rod yet.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the connector with plastic guide (1) to the gearshift lug and lock it.

Courtesy of BMW OF NORTH AMERICA, INC.

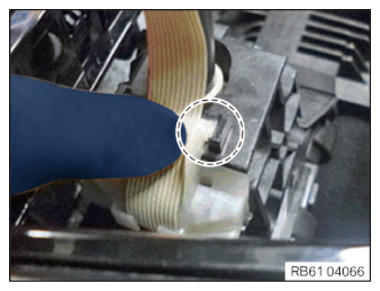

Press the plastic guide forwards into the upper 2 locks.
The detents must snap in audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

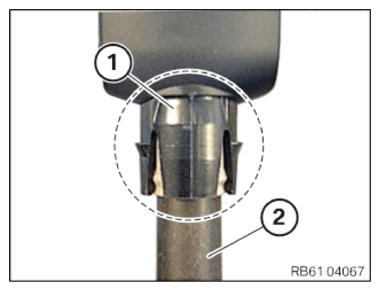

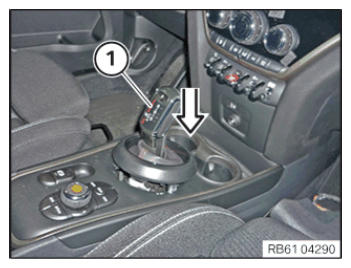

Carefully press down the selector lever (1) vertically.
The selector lever must engage on gearshift rod (2) audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

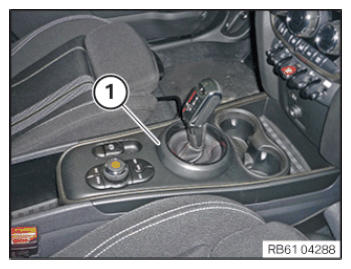

Push down retaining ring (1) until it engages.

Courtesy of BMW OF NORTH AMERICA, INC.
