41 62 515 REMOVING AND INSTALLING/REPLACING LEFT TAILGATE HINGE (TRUNK LID REMOVED) REP-REP-RAF6041-4162515 - V.1 (Countryman 2017-2023, except PHEV)
Read contents of BODY, GENERAL .
For stripping and rebuilding operations, refer to surrounding texts on KSD (FRU number 41 62 515).
Removal

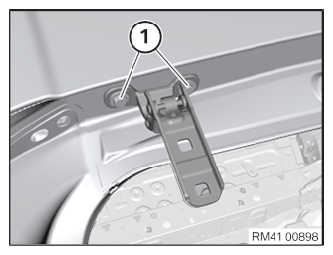

Release screws (1) and remove hinge.
Installation
Install hinge and tighten screws (2).
Installation note:
Tightening torque 41 62 2AZ .
ADJUST hinge together with trunk lid.
