Removing The Rear Left Side Panel

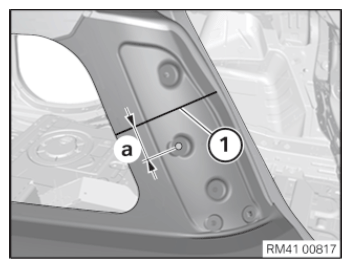

Mark the separating cut (1) on the D-pillar according to the dimensions and cut. Disconnect only the outer panel.
Compare position of severance cut with reinforcement plate.
Dimension = approximately 48 mm from the center of the hole Ø 4 mm.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Determination of separating cut using a template
Determine position of the severance cut in addition to the dimensions with the aid of a template (1).

Courtesy of BMW OF NORTH AMERICA, INC.

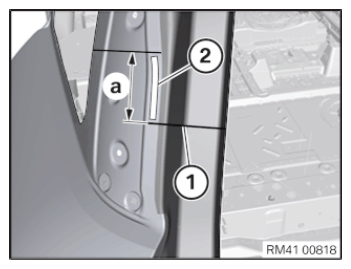

Mark the separating cut (1) on the water channel according to dimensions and cut. Disconnect only the outer panel.
Dimension = approximately 80 mm below the D-pillar separating cut.
Open welded connections in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

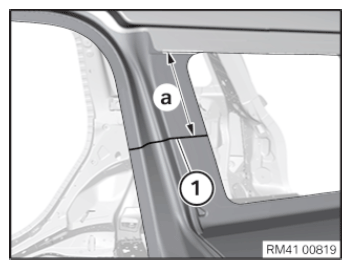

Mark the separating cut (1) on the C-pillar according to the dimensions and cut. Disconnect only the outer panel.
Dimension a = 135 mm below the component edge of the roof outer skin.
Open welded connections in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

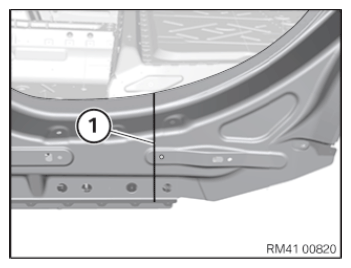

Mark the separating cut (1) on the door sill as shown and cut. Disconnect only the outer panel.
Compare position of severance cut with reinforcement plate.

Courtesy of BMW OF NORTH AMERICA, INC.

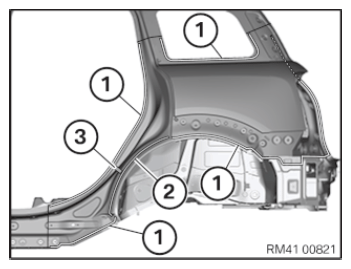

Release welded connections in areas (1).
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Releasing bonded connections
Release bonded connection in area (2).
Detach and remove the side panel from the cavity sealing (3).

Courtesy of BMW OF NORTH AMERICA, INC.
