Preparing New Part
NOTE:
TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions
- Mark and make the separating cuts on the new part in accordance with the separating cuts on the vehicle.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Reinforcement plate with stud bolt (glued or welded) - Prepare the reinforcement plates for the welded connection and the bonded connections on the separating cuts.

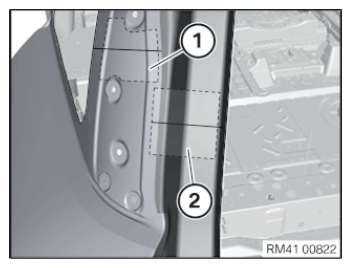

- Adjust the D-pillar reinforcement plate (1) and the universal reinforcement plate (2).
- Fit in new part.

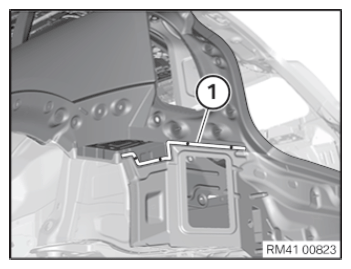

- Set 4 bores in the area (1) with 0 4.2 mm for blind rivets.
- Prepare remaining areas for bonded rivet connections with punch rivets.
- Remove new part and deburr bores.
