New Parts Required
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 2.
For additional information see: 41 00... Repair method for repair stage 2
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Follow-up work
- The following new parts are required (see Electronic Parts Catalog):

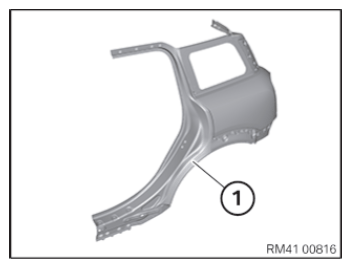

(1) Rear wall
Reinforcement plate, door sill
Reinforcement plate, C-pillar
Reinforcement plate, D-pillar
Reinforcement plate, universal
Attachment nut
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Overview of consumables in Electronic Parts Catalog - Following consumables are required:
Material Quantity Adhesive K5b 1 Adhesive K5a 1 Blind rivet N3 4 Punch rivet N4 35 Punch rivet N5 4 EMC screw 2 Cleaning agent RI 1 Cavity sealing wax remover 1 Sealant D1
