Prepare New Part

NOTE: TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions

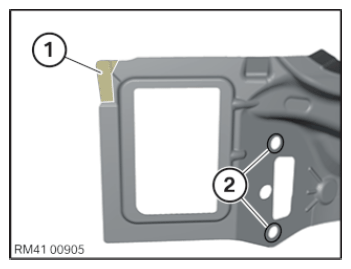

Separate the area (1) as shown.
NOTE: The diameter of the bores 2 may be enlarged by a maximum of 10 mm.

Courtesy of BMW OF NORTH AMERICA, INC.
Open the welded connections in the areas (1) from the inside.

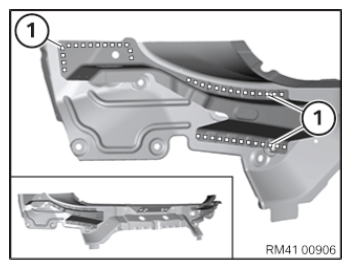

Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

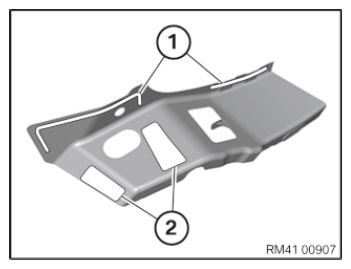

Remove the area (1) by grinding.
Grind the areas (2) on both sides for joining by welding.

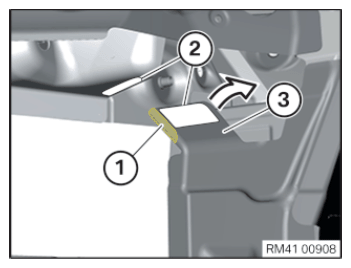

Bend the sheet metal tab (2) up in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust and secure the outer panel of the tail cowling in combination with the trunk lid and tail lights.
Adjust and secure the inner panels of the tail cowling.

Courtesy of BMW OF NORTH AMERICA, INC.
Secure the new part in the areas (2) with locking pliers.
Install the new part reinforcement (3).

Set the areas (1) and (4) bores 0 4.2 mm for the blind rivet.

Area	Number
1	3
4	2

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare the new part reinforcement (1) in the area (2) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Detach the locking pliers in the (1).
Install the inner panel for the tail cowling (2).

Set the areas (3) and (5) bores 0 4.2 mm for the blind rivet.

Area	Number
3	4
4	1
5	3 of

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare new part in the areas (1) for joining through weld.

Courtesy of BMW OF NORTH AMERICA, INC.
