New Parts Required
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 2.
For additional information see: 41 00... Repair method for repair stage 2
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Follow-up work

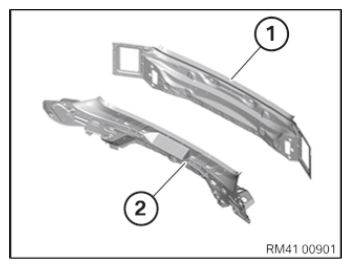

- The following new parts are required (see Electronic Parts Catalog):
- Tail cowling
- Rear inner trim panel
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Overview of consumables in Electronic Parts Catalog - Following consumables are required:
Material Quantity Adhesive K5b 1 Blind rivet N3 26 Punch rivet N4 22 Cleaning agent R1 1 EMC screw 6 Sealant D1 Cavity sealing wax remover
