Installing The Tail Panel

Clean all bonding surfaces with solvent cleaner R1.
Apply adhesive to the bonding surfaces.

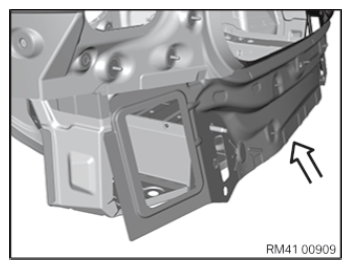

Install the outer section of the tail cowling.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.

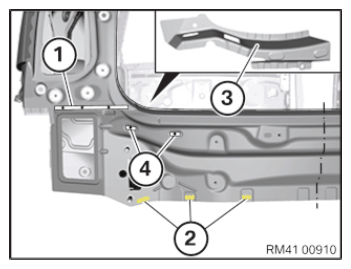

Rivet the tail cowling in the area (1) with blind rivets N3.
Secure the new part in the areas (2) with locking pliers.

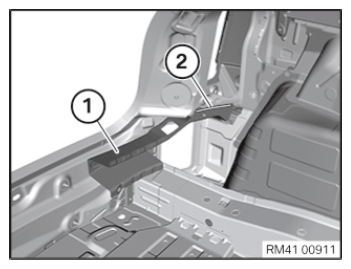

Install the new part reinforcement (3) and rivet the part in the area (4) with blind rivets N3.

Courtesy of BMW OF NORTH AMERICA, INC.

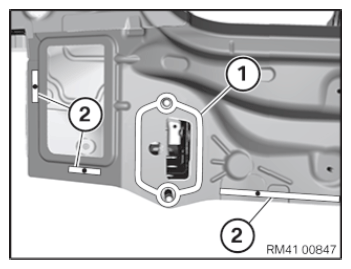

Weld the new part reinforcement (1) in the area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

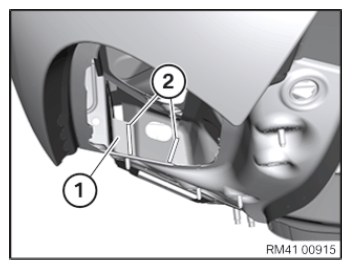

Detach the locking pliers (1).

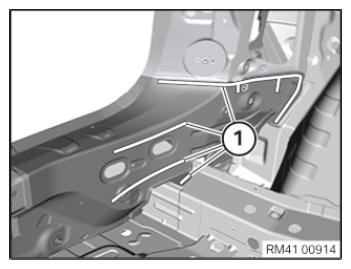

Detach the outer part of the tail cowling in the areas (1) approximately 1 cm from the body.

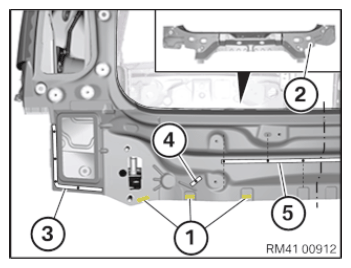

Install the inner part of the tail cowling (2).
Rivet the new parts in the areas (3) to (5) with blind rivets N3.

Courtesy of BMW OF NORTH AMERICA, INC.

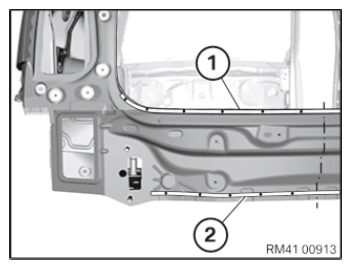

Rivet with punch riveting in the areas (1) and (2) in tail cowling N4.

Area	Number
1	total of 12
2	total of 10

Courtesy of BMW OF NORTH AMERICA, INC.
