Install Tail Panel Outer Section

Clean all the flange surfaces with solvent cleaner R1.
Apply adhesive to all flange surfaces.

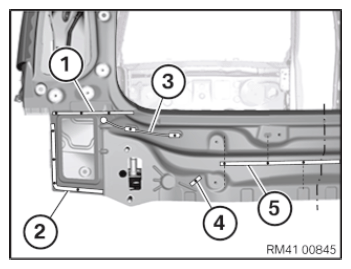

Install the new part and rivet in areas (1) to (5) with blind rivets N3.

Courtesy of BMW OF NORTH AMERICA, INC.

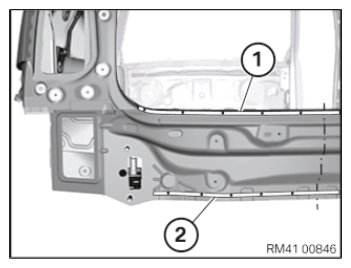

Rivet the tail cowling in the areas (1) and (2) with punch rivets N4.

Area	Number
1	total of 10
2	total of 10

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Avoid contact of the escaped adhesive with the support for the bumper cover. Do not use any cleaning agents containing solvents.

Press in the tail cowling in area (1) and remove the emerging adhesive.
Attach the support for bumper cover.
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... EMC screws

Courtesy of BMW OF NORTH AMERICA, INC.
After the adhesive has hardened, install 3 EMC screws in the areas (2) shown.
