41 31 000 REPLACE ROOF OUTER SKIN (NORMAL ROOF) REP-REP-RA60441-4131000_KLEBEN - V.3 (Countryman 2017-2023, except PHEV)
Refer to repair instructions entitled ROOF OUTER SKIN WITH PANORAMA GLASS ROOF for procedure and apply the principle to the vehicle. STRIP DOWN vehicle.
Installation:
Clean all bonding surfaces with cleaning agent R1.

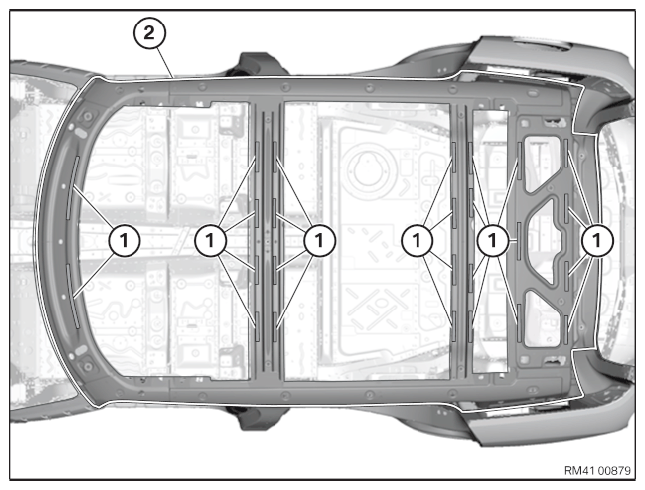

Apply sealant D2 in areas (1).
Apply adhesive in areas (2).
