41 12 653 REPLACING LUGGAGE COMPARTMENT FLOOR, LEFT SECTION (REAR QUARTER PANEL AND TAIL PANEL REMOVED) REP-REP-RAF6041-4112653 - V.2 (Countryman 2017-2023, except PHEV)

Read contents of BODY, GENERAL .

Observe Procedure; Refer to repair stage 3  !

For stripping and rigging operations, refer to the surrounding text of the KSD (FRU number: 41 12 653).

Following new body parts are required (see Electronic Parts Catalog):

1. Luggage compartment floor, left section
2. Rear left wheel arch extension

Courtesy of BMW OF NORTH AMERICA, INC.

Removal

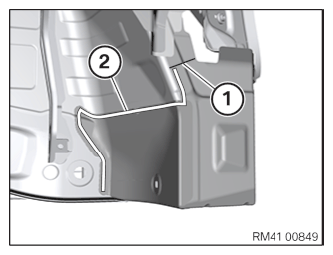

Cut the cut (1) as shown on the schematic diagram.

Open welded connections in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

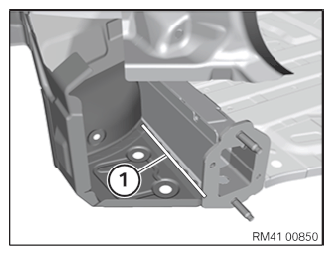

Open welded connections in area (1).

Remove luggage compartment floor.

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Mark severance cut on new part in accordance with severance cut on vehicle and disconnect.

Prepare the new part for joining by welding and adjust in combination with the side panel and the tail panel.

Installation

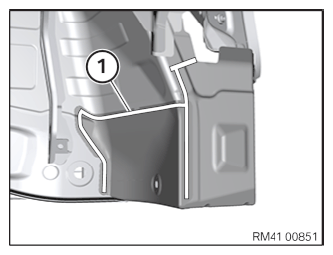

Install the new part and weld in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new part in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
