71 60 051 Removing and installing/replacing complete trailer tow hitch (Countryman base FWD, Countryman S FWD, Countryman base ALL4 AWD, Countryman S ALL4 AWD, Countryman JCW ALL4 AWD)

Preliminary work needed:

• Remove REAR BUMPER TRIM .

Removal:

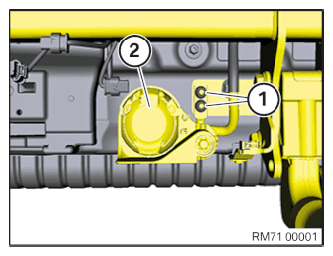

Unscrew nuts (1).

Remove the trailer socket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

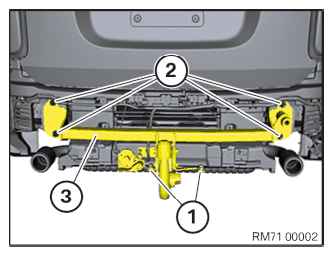

Unscrew the screws (1).

Unscrew nuts (2).

Remove the trailer tow hitch (3) with the help of a second person.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Properly position the trailer tow hitch (3) with a second person.

Tighten down nuts (2).

Tightening torque 71 60 1AZ .

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Properly position the trailer socket (2).

Tighten down nuts (1).

Tightening torque 71 60 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install REAR BUMPER PANEL .
