54 13 085 Removing and installing/replacing complete panorama glass roof (Countryman 2017-2023, except PHEV)

Special tools required:

2 354 941

Courtesy of BMW OF NORTH AMERICA, INC.

Preliminary work needed:

Lower ROOF COVER .

Removal:

Unlock and disconnect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Detach front left/right water drain hoses.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rear left/right water drain hoses.

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten cable tie (1).

Courtesy of BMW OF NORTH AMERICA, INC.

If installed: Loosen the screws (1) and remove the reinforcement plates on the left and right.

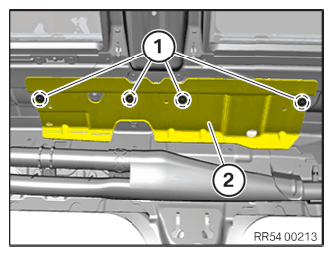

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Two helpers are required to remove the panoramic glass sunroof.

Overview of panorama glass roof:

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).
An assistant must secure the panorama glass roof to prevent it falling.

Attention!

Do not damage any surrounding components when removing the panorama glass roof.

Unscrew the screws (2).
Carefully lower the panorama glass roof and remove from vehicle towards rear through tailgate opening.

Installation:

NOTE: To stop creakings, secure all screws (1) prior to installation with plastic washers (2).
If the standard screws can no longer grip, use "repair screws" (larger threads).

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Two helpers are required to install the panoramic glass sunroof.

Panorama glass roof:

Courtesy of BMW OF NORTH AMERICA, INC.

Insert panorama glass roof and loosely tighten screws (1 and 2).

The panorama glass roof must still be able to shift in the body aperture.

Attention!

Do not crush any cables when installing the panorama glass roof.

Panorama glass roof:

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: On account of leaks, the panorama glass roof must be exactly aligned to body aperture.

Insert the special tool 2 354 941 in the center bores up to the stop in the panoramic glass sunroof and body.

Panorama glass roof glides into place.

Tighten the screws.

Tightening torque 54 12 5AZ .

Attach cable clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

If installed: Position the reinforcement plates on the left and right and tighten the screws (1).

Tightening torque 54 12 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Attach rear left/right water drain hoses.

NOTE: Make sure water drain hoses are correctly seated.
Water can enter the vehicle interior if the water drain hoses are not installed correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Attach front left/right water drain hoses.

NOTE: Make sure water drain hoses are correctly seated.
Water can enter the vehicle interior if the water drain hoses are not installed correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install the ROOF COVER .
INITIALIZE THE PANORAMA GLASS ROOF .

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
