52 26 412 Replacing backrest cover for right rear seat (Countryman 2017-2023, except PHEV)

Special tools required:

• 52 0 050

Preliminary work needed:

• Remove HEAD RESTRAINT .
• Remove GUIDE SLEEVES .
• Removing REAR PANEL ON REAR SEAT BACKREST .

Removal:

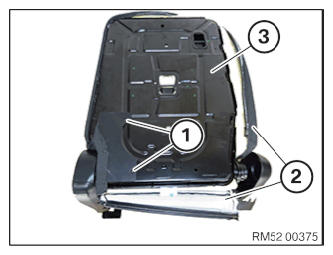

Release expanding rivet (1).

Feed out cover (2) from backrest frame (3).

Courtesy of BMW OF NORTH AMERICA, INC.

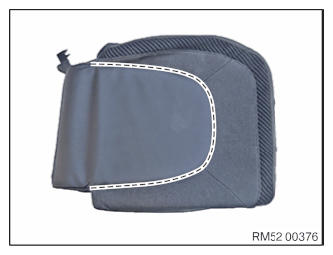

Disconnecting cover and cushion:

• Release all clamps on trim wires
• Remove cover from cushion
• Remove remaining clamps from cover and cushion

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

• Pull out all trim wires from cover
• If necessary, cut pockets in new cover for trim wires
• Push trim wires into pockets of seat cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

1. Upholstery
2. Clamp
3. Trim wire in cushion
4. Trim wire in backrest cover
5. Backrest cover

Courtesy of BMW OF NORTH AMERICA, INC.

Position cushion (1) including cover (2) from the top in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed cushion with cover (2) over the backrest frame (3).

Insert expanding rivets (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install REAR PANEL ON REAR SEAT BACKREST .
• Install GUIDE SLEEVES .
• Install HEAD RESTRAINT .
