52 26 400 Replacing seat cover for rear seat (Countryman 2017-2023, except PHEV)

Special tools required:

• 52 0 050

Preliminary work needed:

• Remove REAR SEAT BENCH .

Removal:

Unclip ISOFIX cover cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

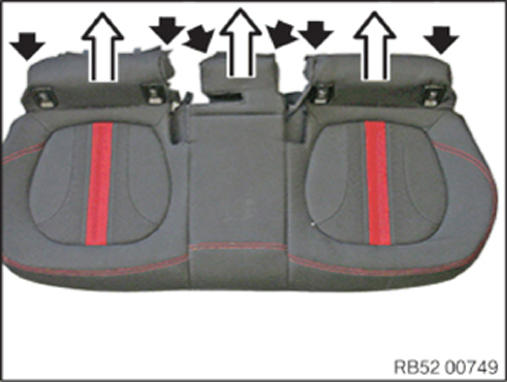

Unclip seat cover (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out welt in marked area using a suitable tool.

Remove seat fabric.

Courtesy of BMW OF NORTH AMERICA, INC.

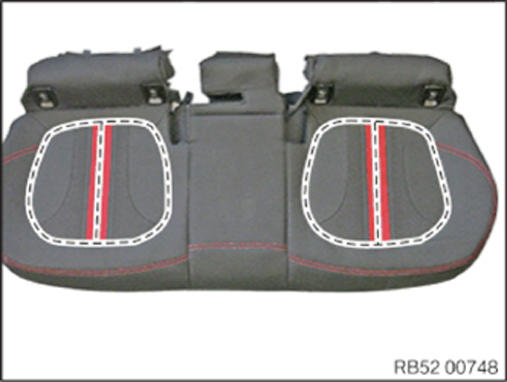

Detaching cover and upholstery:

• Release all clamps on trim wires
• Remove seat cover from upholstery
• Remove remaining clamps from cover and upholstery

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

• Push trim wires into new seat cover
• If necessary, cut in mounting for trim wires of new cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

Insert new clamps with special tool 52 0 050.

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Trim wire in seat cover
5. Seat cover

Courtesy of BMW OF NORTH AMERICA, INC.

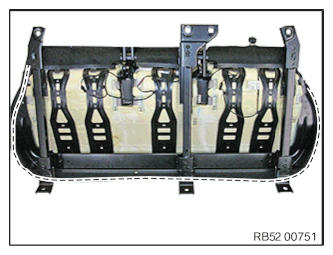

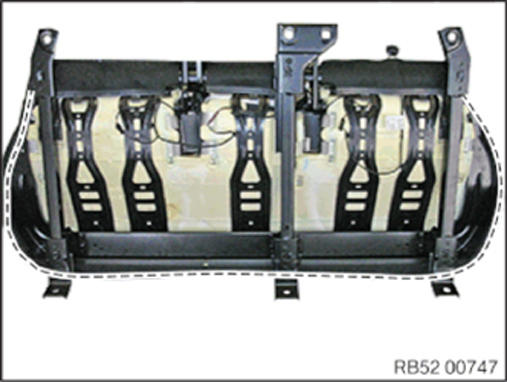

Feed in seat cover over the seat frame in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

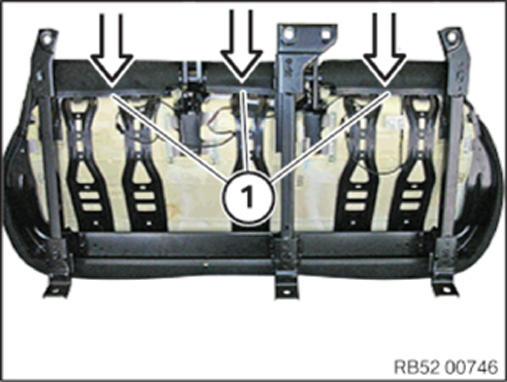

Feed in seat cover (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

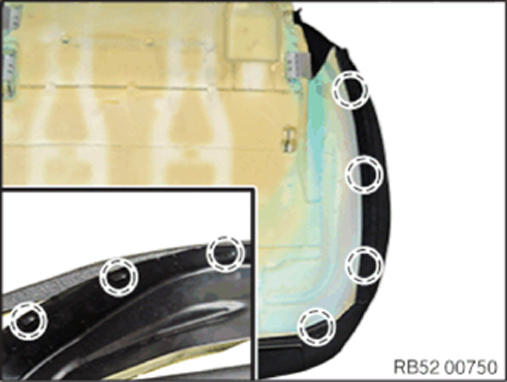

Clip welt into marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in ISOFIX cover caps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install REAR SEAT BENCH .
