52 26 153 Removing and installing/replacing seat cover for left rear seat (Countryman 2017-2023, except PHEV)

Special tools required:

• 52 0 050

Preliminary work needed:

• Remove LEFT REAR SEAT .

Removal:

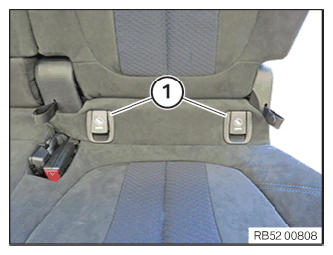

Unclip covers (1).

Courtesy of BMW OF NORTH AMERICA, INC.

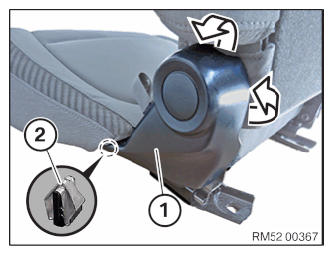

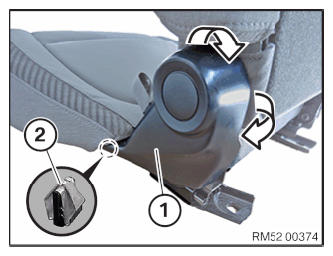

Detach the trim (1) from the clamp (2).

Unclip cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

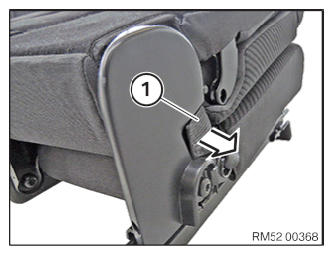

Unclip cover (1) at the side.

Courtesy of BMW OF NORTH AMERICA, INC.

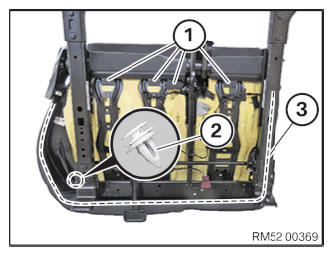

Detach lugs (1).

Release fixture (2).

Lever out welt (3) in marked area using a suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.

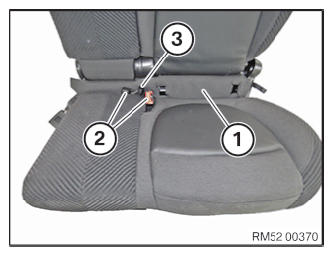

Remove seat cover (1) from seat mechanism, feeding out the lower straps (2) and the retaining strap (3).

Courtesy of BMW OF NORTH AMERICA, INC.

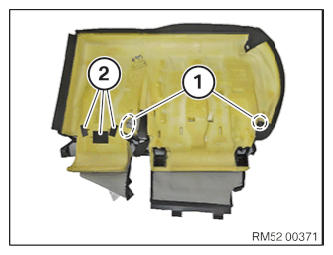

Loosen clamps (1).

Feed out lugs (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnecting cover and cushion:

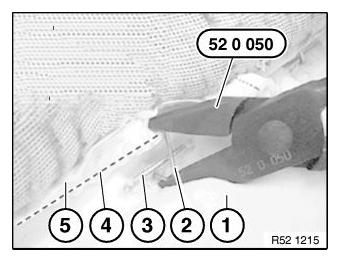

• Release all clamps on trim wires
• Remove seat cover from cushion
• Remove remaining clamps from cover and cushion

Courtesy of BMW OF NORTH AMERICA, INC.

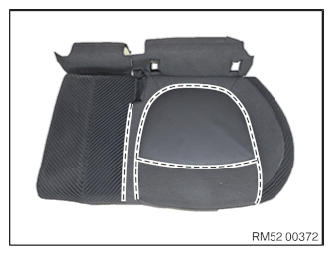

Replacement only:

• Push trim wires into new cover
• If necessary, cut in mounting for trim wires of new cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Upholstery
2. Clamp
3. Trim wire in cushion
4. Trim wire in cover
5. Seat cover

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in cover over seat frame.

Attach clamps (1).

Feed in lugs (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Position cover (1) on seat mechanism, feeding in the lower straps (2) and the retaining strap (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Attach lugs (1).

Fasten clip (2).

Attach welt (3) in marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in cover (1) at the side.

Courtesy of BMW OF NORTH AMERICA, INC.

Attach trim (1) and secure with clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in the covers (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install LEFT REAR SEAT .
