52 26 002 Removing and installing rear seat bench (Countryman 2017-2023, except PHEV)

Preliminary work needed:

• Remove LUGGAGE COMPARTMENT FLOOR COVERING .

Removal:

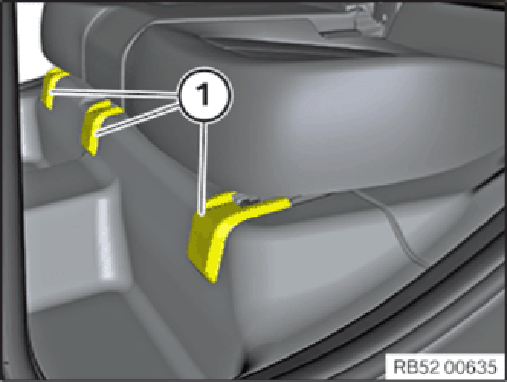

Unclip the trims (1) towards the front.

Courtesy of BMW OF NORTH AMERICA, INC.

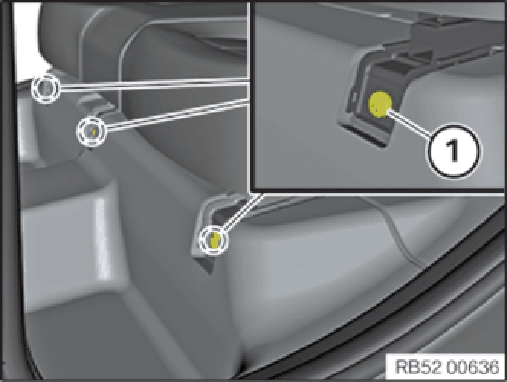

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

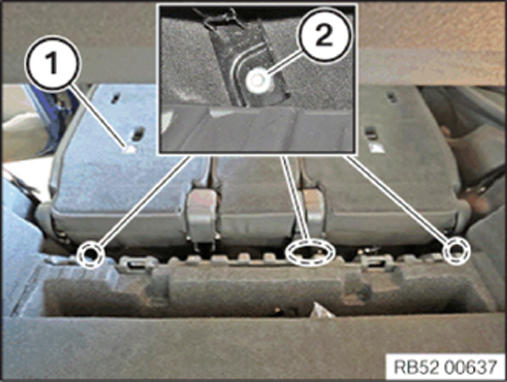

Fold rear seat backrest (1) on left and right.

Unscrew the screws (2).

Carefully lift out rear seat.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carefully insert rear seat (1) and position.

Tighten down screws (2).

Tightening torque 52 26 9AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 52 26 9AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in the trims (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install LUGGAGE COMPARTMENT FLOOR COVERING .
