52 26 000 Removing and installing/replacing left or right rear seat (Countryman 2017-2023, except PHEV)

Removal procedure for the right rear seat is analogue to that for the left rear seat as shown here.

Removal:

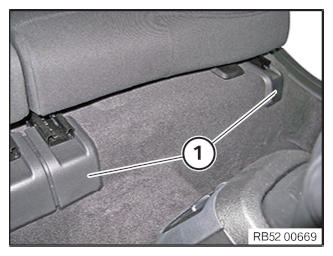

Unclip covers (1) towards front.

Release screws underneath.

Courtesy of BMW OF NORTH AMERICA, INC.

Shift rear seat forwards slightly.

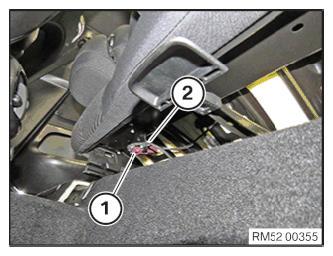

Unfasten plug connection (1) and disconnect.

Unfasten cable tie (2).

Courtesy of BMW OF NORTH AMERICA, INC.

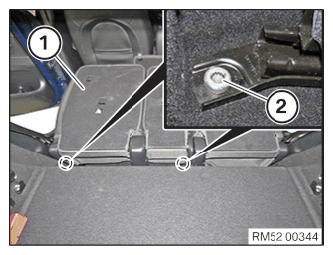

Fold rear seat (1).

Unscrew the screws (2).

IMPORTANT: Risk of damage!
Protect door sill and door sill area with protective covers.

Remove the rear seat (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

IMPORTANT: Risk of damage!
Protect door sill and door sill area with protective covers.

Install the rear seat (1).

Tighten down screws (2).

Tightening torque 52 26 9AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

Secure cable clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten bolts under the covers (1).

Tightening torque 52 26 9AZ .

Clip in the covers (1).

Courtesy of BMW OF NORTH AMERICA, INC.
