51 16 165 Removing and installing/replacing complete center console (Countryman 2017-2023, except PHEV)

Preliminary work needed:

• Remove both SIDE COVERS ON CENTER CONSOLE .

Removal:

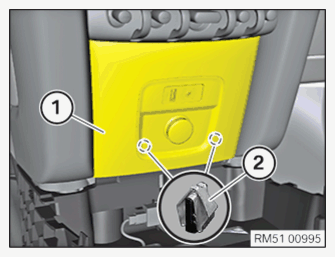

Release the trim (1) on the clamps (2).

Slip off trim (1) downwards.

Unlock associated plug connections and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

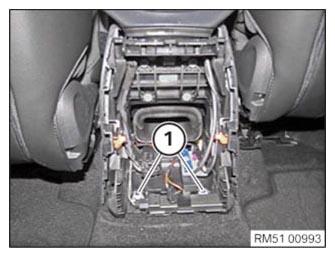

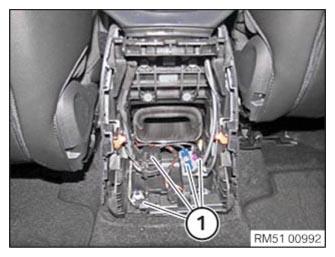

Unlock plug connections (1) and disconnect.

If applicable, detach the associated cable clip from the center console.

Courtesy of BMW OF NORTH AMERICA, INC.

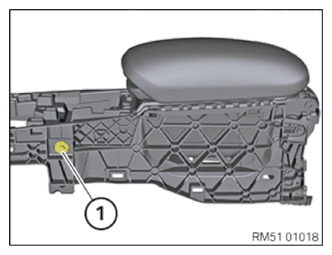

Unscrew nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

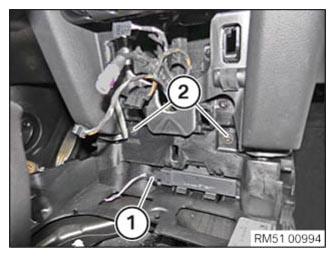

Unfasten plug connection (1) and disconnect.

Unscrew the screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left and right.

Raise the center console and disconnect the associated plug connections as needed.

Remove the center console.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert the center console.

Connect associated connector.

Tighten the screws (1) on the left and right.

Tightening torque 51 16 10AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

Tighten down screws (2).

Tightening torque 51 16 7AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down nuts (1).

Tightening torque 51 16 10AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

If applicable, attach the associated cable clips on the center console.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect associated connector.

Slip on trim (1) upwards from below.

Attach the trim (1) on the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Remove both SIDE COVERS ON CENTER CONSOLE .
