51 47 491 Removing refitting/replacing rear engine undercover - V.5 (Countryman 2017-2023, except PHEV)

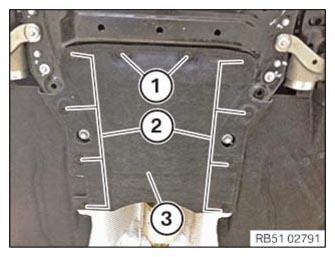

NOTE: Picture for example purposes. Some parts may differ in certain details.

Removal:

Release screws (1 and 2).

Remove underbody protection (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install underbody protection (3).

Tighten down screws (1 and 2).

Tightening torque 51 71 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.
