Body Equipment -- Repair Cooper Countryman (F60)
>>
51 47 Floor-Trunk-Engine Compartment-Trim Panel
>>
51 47 219 Removing and installing/replacing the loading edge trim (Countryman 2017-2023, except PHEV)
>>
Installing loading edge trim
Installing loading edge trim

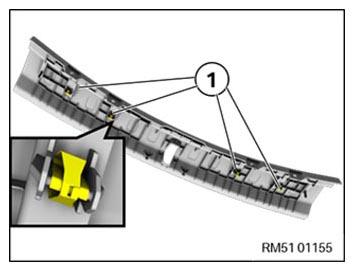

Check the clamps (1) for damage, replace the damaged clamps (1) if applicable.
Courtesy of BMW OF NORTH AMERICA, INC.

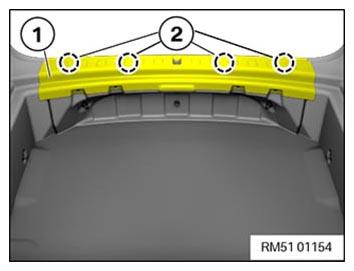

Fit the trim of the loading edge (1) at the detents (2) and clip it in to the bottom.
Courtesy of BMW OF NORTH AMERICA, INC.

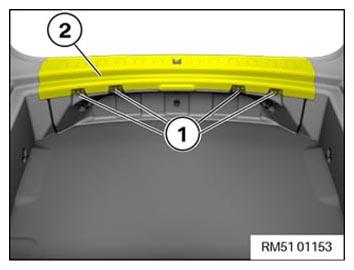

Mount the expanding rivets (1) of the load edge trim (2).
Courtesy of BMW OF NORTH AMERICA, INC.

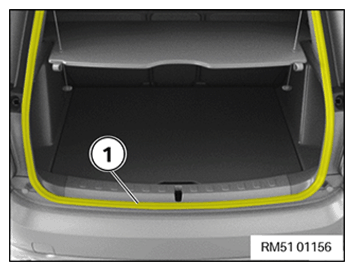

Install the trunk lid seal (1) in the repair area.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
