Install the right luggage compartment wheel arch trim panel (with optional equipment adjustable rear seat bench)

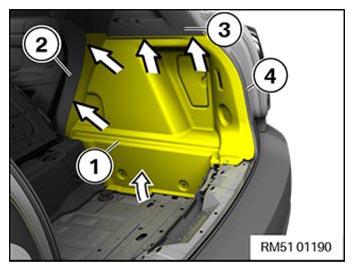

• Fit the luggage compartment wheel arch trim panel (1) in arrow direction.
• Guide in the luggage compartment wheel arch trim panel (1) under the cover (2) of the C-pillar on the bottom and under the parapet (3).
• Correctly install the sealing lip of the trunk lid seal (4) over the luggage compartment wheel arch trim panel (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the expanding rivets (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRUNK COMPARTMENT LIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to INSTALL TRIM PANEL FOR STORAGE SHELF (PARCEL SHELF) .
