51 47 098 Removing and installing/replacing trim on C-pillar at bottom left or right (Countryman 2017-2023, except PHEV)

Installation note:

• Clean all threaded belt connections with micro-encapsulated external and internal threads.
• Shavings or other debris must not remain in the components.
• If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243 of medium strength  .
• The screw connection must be completed within 10 minutes as hardening begins after this period.

Preliminary work needed:

• Remove the REAR DOOR SILL COVER STRIP .

Removal:

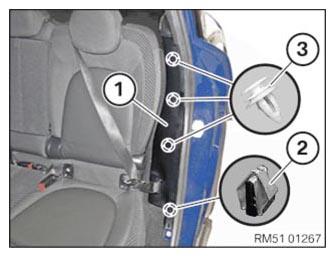

Release the trim panel (1) from the clamp (2) and from the clips (3).

Courtesy of BMW OF NORTH AMERICA, INC.

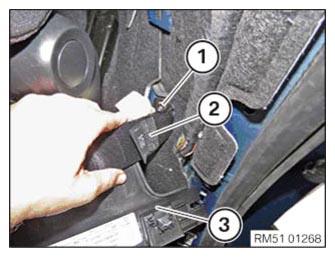

Remove screw (1).

Guide the safety belt (2) out of the trim panel (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide the seat belt (2) in through the trim panel (3).

Renew screw (1).

Tighten screw (1).

Tightening torque 72 11 22AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the trim panel (1) with the clamp (2) and the clips (3).

Make sure the edge protection on the trim panel (1) fits correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the REAR DOOR SILL COVER STRIP .
