Adjusting rear lid lock
NOTE:
TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: BODY GAP DIMENSIONS REP-REP-RAF6041-4106200 - V.1 (COUNTRYMAN 2017-2023, EXCEPT PHEV) .
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: BODY GAP DIMENSIONS REP-REP-RAF6041-4106200 - V.1 (COUNTRYMAN 2017-2023, EXCEPT PHEV) .

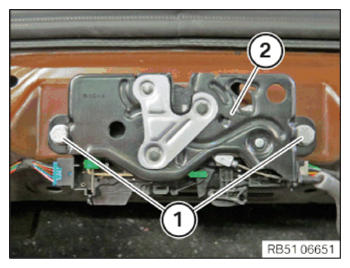

- Slacken the screws (1) until the trunk lid lock (2) is barely adjustable and centers itself.
- Close trunk lid.
- Open trunk lid.
- Tighten the screws (1).NOTE: When the trunk lid is closed, the striker must not tap or scrape against the tailgate lock. Watch out for scratches!TIGHTENING TORQUE SPECIFICATIONS
Tailgate lock to body M8x20 screw Tightening torque 19Nm
Follow-up work
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
