Installing the model inscription
NOTE:
TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: 51 00... NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: 51 00... NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE
CAUTION:
Laser beam
.
Injury hazard!
Injury hazard!
- Do not look into the laser beam.
- Park the vehicle and the special tool 2 407 566 on a flat and even surface.
- Mount the laser on the tripod.
- Switch on laser (Position without automatic level).
- Activate laser horizontally and vertically.
- Position the tool behind the vehicle.

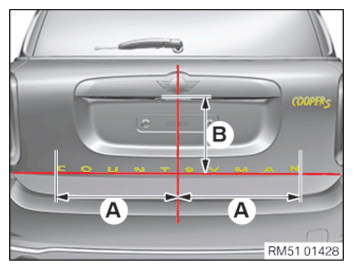

- Align vertical laser beam at the center of the mini emblem.
- Align the horizontal laser beam on the edge of the handle with the dimension (B) = 27 cm.
- Remove the adhesive residue and clean the bonding surface with the cleaner R2.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Detach the liner (protective film) from the adhesive strip of the model inscription.
- Align the model inscription with the laser beams having the dimension (A) = 44 cm and push onto the trunk lid.
- Position the tool behind the vehicle.

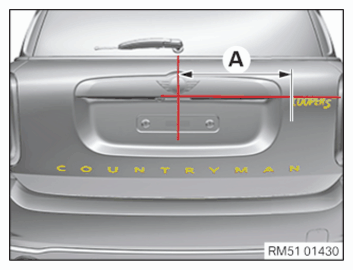

- Align vertical laser beam at the center of the mini emblem.
- Align the horizontal laser beam with the edge of the handle.
- Remove the adhesive residue and clean the bonding surface with the cleaner R2.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Detach the liner (protective film) from the adhesive strip of the model inscription.
- Align the model inscription as shown with dimension (A) = 42 cm with the laser beams and press it onto the trunk lid.
