51 13 305 Removing and installing/replacing left or right roof railing (Countryman 2017-2023, except PHEV)

Preliminary work needed:

• Remove HEADLINING .

Removal:

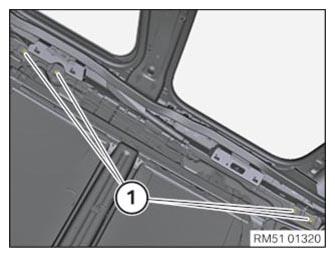

Unscrew nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

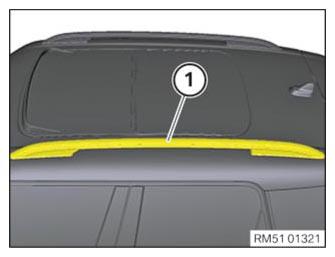

Remove roof rails (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

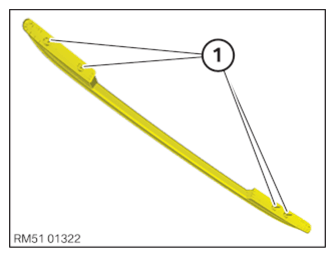

Gasket on roof rails (2) must not be damaged.

Replace butyl cord around the threaded bolt (1) (use 4 mm diameter butyl cord).

Courtesy of BMW OF NORTH AMERICA, INC.

Put compensating element (1) on the roof outer skin by twisting the hexagon head (2).

Tightening torque 51 13 9AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Mount the roof rails.

Replace nuts (1).

Tighten down nuts (1).

Tightening torque 51 13 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Fit the HEADLINING .
