Installing front windshield panel cover

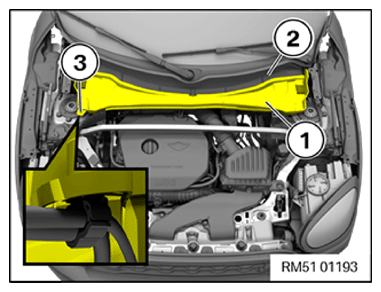

• Position the windshield panel cover (1) on the cover (2).
• Insert the hose pipes into the clamp (3) and close the clamp (3).
• Insert the windshield panel cover (1) toward the rear into the cover (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL THE FRONT HOOD SEAL AT THE REAR .
