Remove the diffuser

Preliminary work

• Refer to REMOVE THE SERVICE CAP FOR THE TAIL LIGHT ON THE LEFT AND RIGHT .
• Refer to REMOVING THE LEFT AND RIGHT TAIL LIGHTS .
• Refer to REMOVE REAR BUMPER TRIM .

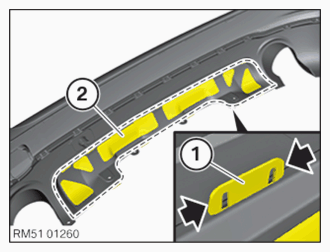

• Release detents (1) (arrows).
• Remove the diffuser (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
