51 11 Bumper, Front
>>
51 11 781 Replacing deformation element, bottom, right (front bumper cover detached) (Countryman 2017-2023, except PHEV)
>>
Remove the lower right deformation element
Remove the lower right deformation element
Preliminary work
Refer to
REMOVING THE SUPPORT FOR THE FRONT BUMPER COVER AT THE BOTTOM
.

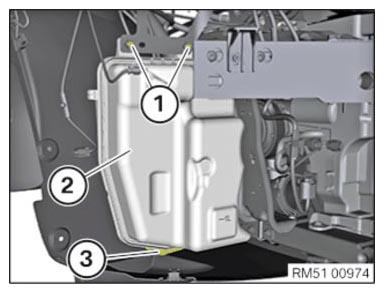

Loosen screws (1).
Detach the washer fluid reservoir (2) from the holder (3).
Set the washer fluid reservoir (2) slightly to the side.
Courtesy of BMW OF NORTH AMERICA, INC.

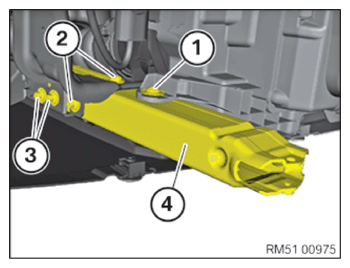

Loosen screws (1) to (3).
Remove the deformation element (4).
Courtesy of BMW OF NORTH AMERICA, INC.
