65 13 060 Removing and installing/replacing loudspeaker (mid-range speaker, in dashboard) - V.1 (Countryman 2017-2023, except PHEV)

Special tools required:

Removal:

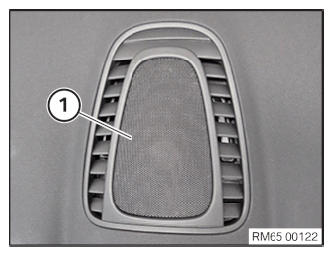

Unclip and remove cover (1) upwards with special tool 00 9 327.

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

Remove the mid-range speaker (2) from the dashboard (3) toward the top.

Disconnect plug connections underneath.

Remove mid-range speaker (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install the mid-range speaker (2) and connect the plug connections.

Insert the mid-range speaker (2) into the dashboard (3).

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Correctly position and engage the trim (1) in the dashboard.

Courtesy of BMW OF NORTH AMERICA, INC.
