Removing Tale Light

Preliminary work

• Refer to REMOVING THE SERVICE CAP FOR THE TAIL LIGHT .

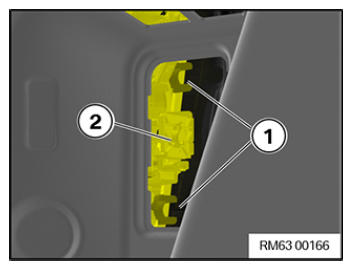

• Unlock the twistlocks (1) of the tail light (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

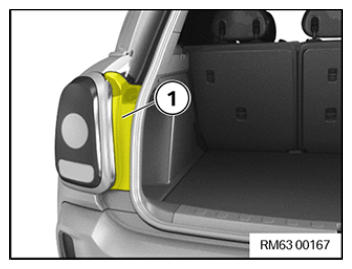

• Unclip the water channel cover (1) out of the tail light toward the back with the special tool 0 496 569 (00 9 325)and remove it.

  Courtesy of BMW OF NORTH AMERICA, INC.

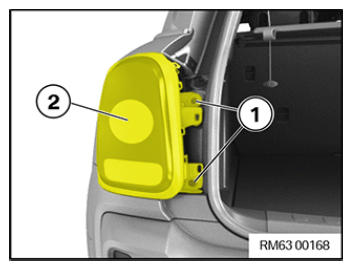

• Unscrew and remove the nuts (1) of the tail light (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the tail light (2) toward the rear.

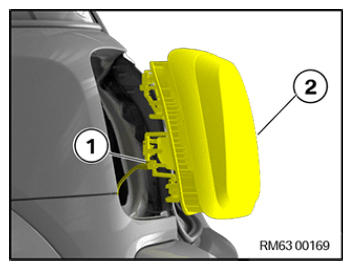

• Unlock and disconnect the plug connection (1) and remove the tail light (2).

Courtesy of BMW OF NORTH AMERICA, INC.
