Remove the bulb socket for the tail light
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE SERVICE CAP FOR THE TAIL LIGHT .
CAUTION:
Danger through light source.
Injury hazard! Risk of short circuits!
Injury hazard! Risk of short circuits!
- Disconnect light source from voltage supply before replacing: Switch off lighting system and ignition.
- For additional information see: 63 99 INFORMATION ON HANDLING BULBS/LIGHT SOURCES (EXTERIOR LIGHTING)

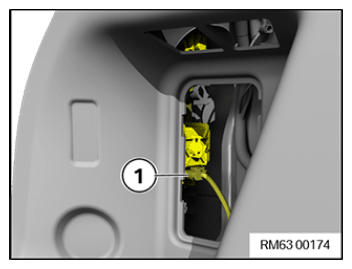

- Unlock plug connection (1) and disconnect.

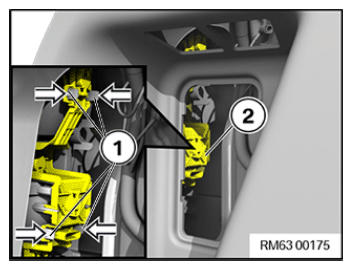

- Release the detents (1) by pressing them together and remove the bulb socket (2) from the tail light.

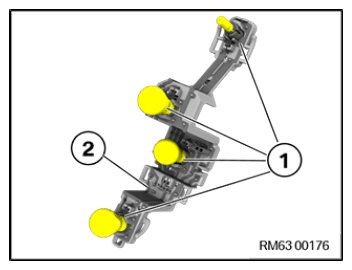

- Turn the bulbs (1) by slightly applying counter clockwise pressure and remove them from the bulb socket (2).
