Install headlight

Replace the adjusting elements (2).
Parts: Adjusting elements

The adjusting elements (2) must not be reused.
Replace screws (1).
Parts: Screws

Courtesy of BMW OF NORTH AMERICA, INC.
Position the headlamp (1).
Only press the screws (2) into the adjusting element until you feel a stop.
Screws (2) must not be screwed in.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten screw (2) on headlamp (3) hand-tight.
Press the screw (1) into the adjusting element only until it reaches a stop noticeably.
The screw (1) must not be screwed in.

Courtesy of BMW OF NORTH AMERICA, INC.
Check the clamps (1) for damage.
Check chrome ring for firm seating.
Release detents (1) and remove chrome ring from hood.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the special tool 2 449 464 into the hood from the outside.
Secure special tool 2 449 464using special tool 2 361 199.

Courtesy of BMW OF NORTH AMERICA, INC.
Close the engine compartment lid.
The hood must be closed correctly on both sides.
Position the special tool 2 361 198 (C) on headlight (1).
Lift, align and hold the headlight (1) using special tool 2 361 198 (C).

Courtesy of BMW OF NORTH AMERICA, INC.
Keep the aligned headlight (1) in position with special tool 2 361 198 (C).
Tighten the screws through the openings of the special tool 2 449 464 .

TIGHTENING TORQUE SPECIFICATIONS

Headlight to body
screw Replace screws and adjusting elements	Tightening torque	6Nm

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Headlight to side panel
screw	Tightening torque	6Nm

Connect the connector (arrow).
Clip in cable clip.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the connector (1) on headlight (2).
Connector must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the chrome ring in the hood.
The clamps (1) must snap-in noticeably.

Courtesy of BMW OF NORTH AMERICA, INC.

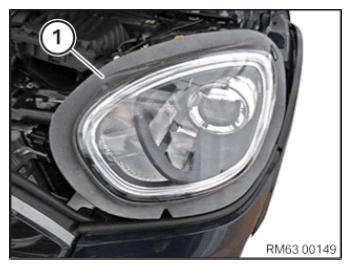

Install the seal (1) on the headlight.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
