65 20 415 Removing and installing or replacing DAB antenna amplifier - V.1 (Countryman 2017-2023, except PHEV)

Preliminary work needed:

• Remove the top TRIM FOR THE REAR WINDOW FRAME .

Removal:

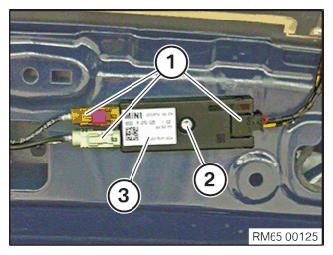

Unlock plug connections (1) and disconnect.

Remove screw (2).

Remove antenna amplifier (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach the antenna amplifier (3).

Tighten screw (2).

Tightening torque 65 24 1AZ .

Connect and lock the plug connections (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install the top TRIM FOR THE REAR WINDOW FRAME .
