66 20 535 Removing and installing/replacing rear right ultrasonic sensor (Countryman 2017-2023, except PHEV)

Removal:

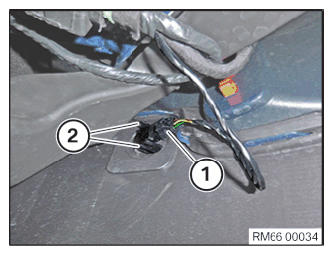

Unfasten plug connection (1) and disconnect.

Unlock detents (2).

Detach the ultrasonic sensor from the holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Make sure the rubber ring (1) is correctly fitted on the ultrasonic sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Clean the plug connection before installing the ultrasonic sensor (2) on the wiring harness!
The safety catches (1) of the ultrasonic sensor (2) must engage exactly in the mountings (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert and engage the ultrasonic sensor (2) in the holder.

Connect and lock plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.
