66 20 517 Removing and installing/replacing an ultrasonic sensor at front center left (inside) (Park Distance Control) (Countryman 2017-2023, except PHEV)

Preliminary work needed:

REMOVING FRONT BUMPER COVER .

Removal:

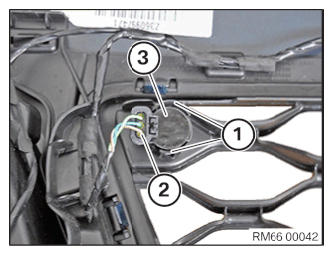

Unlock detents (1).

Unfasten plug connection (2) and disconnect.

Pull the ultrasonic sensor (3) out of the holder toward the top

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Make sure the rubber ring (1) is fitted correctly on the ultrasonic sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Clean the plug connection prior to installing the ultrasonic sensor (2) on the wiring harness!
Safety catches (1) of ultrasonic sensor (2) must engage exactly in mountings (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Install the ultrasonic sensor (3) in the holder and engage it at the detents (1).

Connect plug connection (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install FRONT BUMPER COVER .
