66 20 537 Removing and installing/replacing one rear middle right ultrasonic sensor (Countryman 2017-2023, except PHEV)

WARNING: Risk of burning!
Work on the exhaust system may only be carried out when it has cooled down!

Removal:

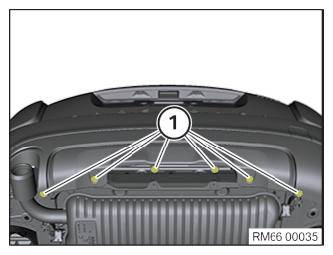

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unlock the detents at the marks (arrow).

Remove the ultrasonic sensor (2) from the holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Make sure the rubber ring (1) is correctly fitted on the ultrasonic sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Clean the plug connection prior to installing the ultrasonic sensor (2) on the wiring harness!
Safety catches (1) of ultrasonic sensor (2) must engage exactly in mountings (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Latch ultrasonic sensor (2) into holder.

Connect and lock plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
