Installing the spray nozzle for the rear window washer system

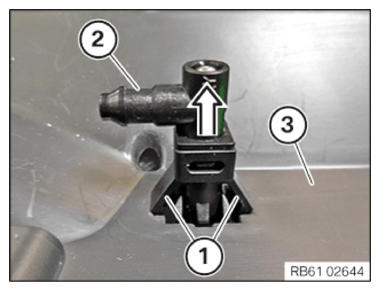

• Install spray nozzle for rear window washer system (2) into rear spoiler lower part (3) in arrow direction.
• Detents (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect hose pipe for rear window washer system (2) to spray nozzle for rear window washer system (3).
• Clip in lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR SPOILER .
